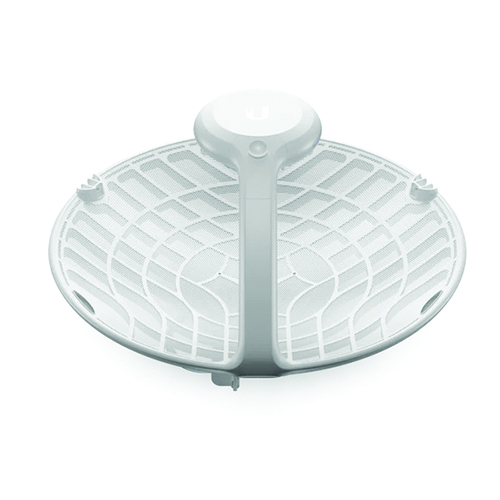

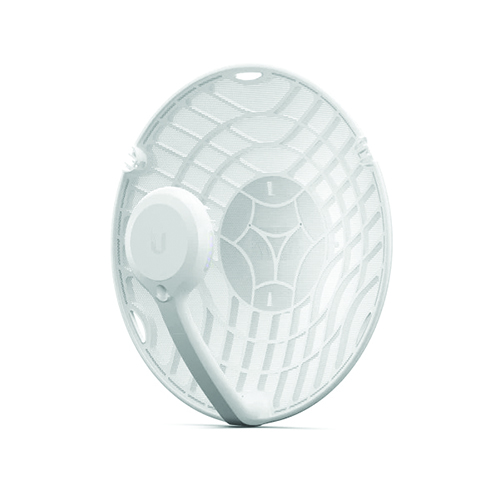

Ubiquiti airFiber 60
60 GHz PtP radio system with 5 GHz backup.
The airFiber 60 equipped with a high-gain dish antenna and 5GHz backup radio establishes sustainable PtP links and deliver a 1.9 Gbps throughput rate. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). It can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.
Product Highlights
• Low interference 60 GHz radio with 5 GHz backup
• Link range: up to 2 km
• Link planning support via ISP Design Center
• Dimensions: 413 x 413 x 320 mm (16.26 x 16.26 x 12.60")
• Weight Without Mount: 1.4 kg (3.09 lb)
• With Mount: 1.8 kg (3.97 lb)
• Enclosure Materials: Aluminum, UV-stabilized Polycarbonate
• Mounting: Pole Mount (Included)
• Wind Loading: 420 N at 200 km/h (94.4 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Networking Interface: (1) 10/100/1000 Mbps Ethernet Port
• Antenna Gain: 5 GHz 60 GHz 11 dBi 38 dBi
• Max. Power Consumption: 11W
• Power Method: Passive PoE, Pins 4, 5+ and 7, 8-
• Power Supply: 24VDC, 0.5A Gigabit PoE Adapter (Included)
• Voltage Range: +22 to +26VDC
• LEDs: Power/Ethernet/5G/60G/GPS
• ESD/EMP Protection: ± 24kV Contact/Air
• Operating Temperature: -40 to 60° C (-40 to 140° F)
• Operating Humidity: 5 to 95% Noncondensing
