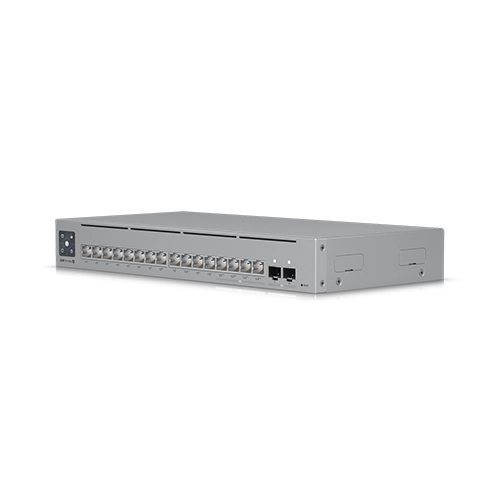

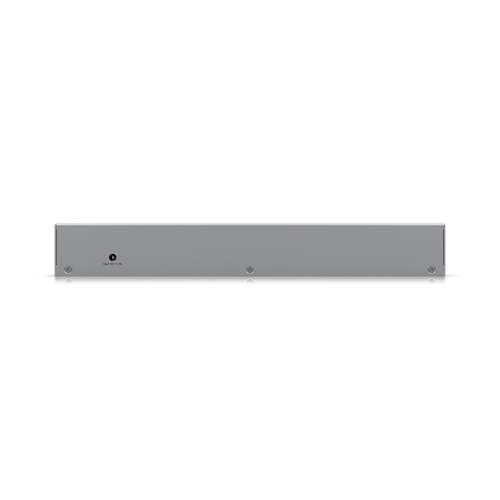

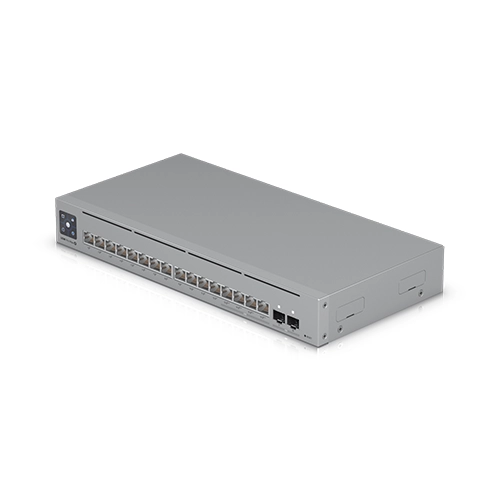

Ubiquiti Pro Max 16 PoE

USW-Pro-Max-16-PoE (180W)

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

Technical Specification
Data Sheet
Inquire Now




Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Port Layout



1 GbE RJ45
12 (All PoE+) (1G/100M/10M)


2.5 GbE RJ45
4 (All PoE++) (2.5G/1G/100M/10M)


10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
180W
Layer 3
✓
Form Factor
Rack mount (1U), desktop, wall

Etherlighting™
✓

Performance
Switching Capacity
84 Gbps
Total Non-Blocking Throughput
42 Gbps
Forwarding Rate
62 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size



ARP Entries
6,000


IPv4 Routes
512
Packet Buffer Size
1.5 MB
Access Lists



IPv4
128


MAC
128

Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
